Solar Brackets-Ground And Flat Roof Mounting System
Application
For installation of solar modules on ground and flat roofs
Description
The main part of structures is anodized aluminum, which features anti-corruption, light weight, easy installation, and has been widely applied in lots of projects.
Product Features
1. Anti corruption 2. Light weight 3. Easy installation 4. Mature design
Project Case
Successfully applied in projects located in Nanjing, Zhengzhou.
Technical Parameter
| Installation site | Outdoor |
| Max. Wind Speed | 55m/s |
| Max. Snow load | 1.4KN/㎡ |
| Main material | AL6005-T5 / AL6063-T5 |
| Accessories |
SUS304 |

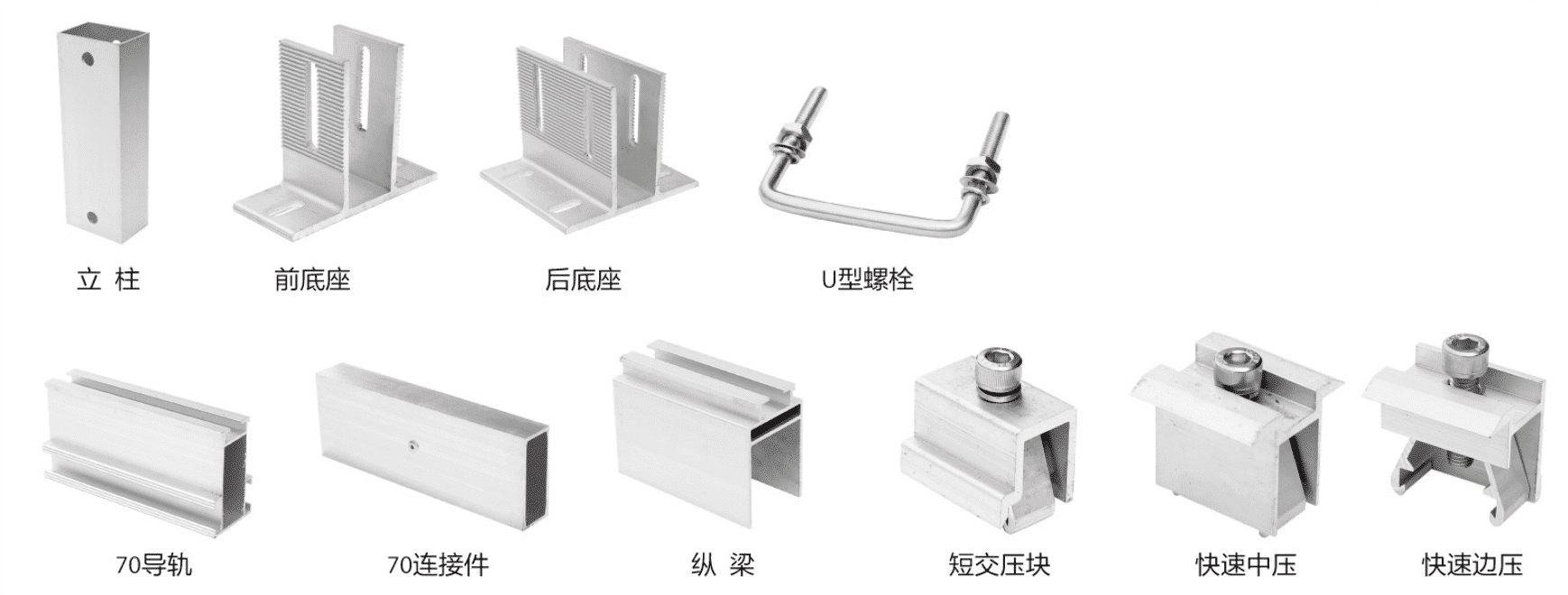

Sample Photos

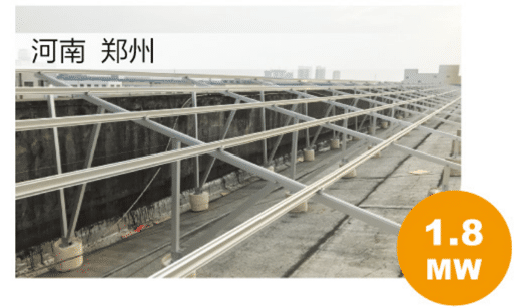

Case Photos
Product Details
Product Advantages
Our design and service ability are also leading in the industry as our team has abundant experience from lots of oversea projects. For example, off-grid solar system in 5G Telecom base (South Korea), integrated solar storage system for eco toilet (South africa, Gates foundation), Large scale floating solar project(Japan), Rooftop solar project awarded with Red Dot Design (India), Rooftop project resist category 13 Tayphoon (Taiwan).
Providing our customer one stop solution and products, we are able to offer customized design, manufacturing, service for customer’s various demand.
FAQ
1. The production department adjusts the production plan when receive the assigned production order at the first time.
2. The material handler goes to the warehouse to get the materials.
3. Prepare the corresponding work tools.
Our factory covers a total area of 50000m² with an annual output value of 19.4 million USD.
Each batch of products can be traced back to the supplier, batching personnel and filling team by production date and batch number, to ensure that any production process is traceable.
